1. Introduction
Rule-Based Expert Systems are among the earliest and most influential approaches in Artificial Intelligence (AI) for automated decision-making. These systems replicate human expertise by applying predefined rules and logical reasoning to a set of known facts.
Unlike machine learning models that rely on large datasets and statistical learning, rule-based systems depend on explicitly defined knowledge provided by domain experts. Because of this, they are widely used in areas where expert knowledge is well understood and decisions must be transparent and explainable.

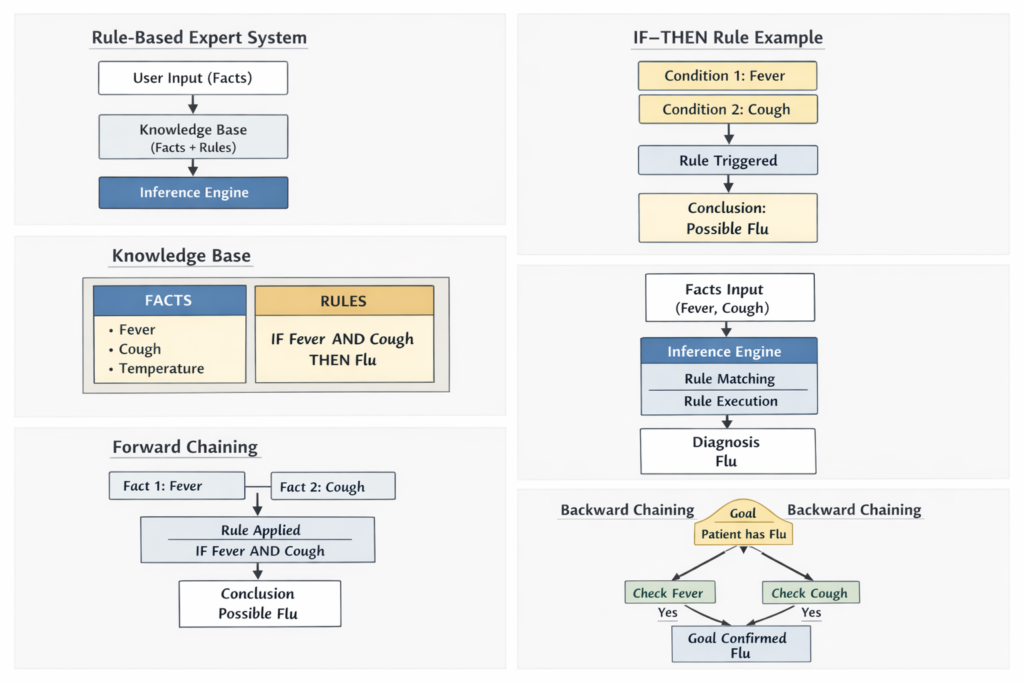

2. What is a Rule-Based Expert System?
A Rule-Based Expert System is a computer program designed to solve problems by applying a collection of IF–THEN rules to a set of facts stored in a knowledge base.
The system evaluates the available information, matches it with predefined rules, and generates conclusions or recommendations. This approach allows the system to mimic human decision-making processes in specialized domains such as medicine, finance, and engineering.
3. Production Rules (IF–THEN Rules)
Production rules form the core logic of rule-based expert systems. These rules follow a simple logical format:
IF condition(s) THEN action(s)
Example
IF patient has fever AND cough
THEN suggest “Possible Flu”
Rules can be simple or complex depending on the domain. By linking multiple rules together, expert systems can create complex decision pathways that simulate expert reasoning.
4. Knowledge Base
The Knowledge Base is the repository that stores all the domain knowledge required by the system.
It contains two main elements:
Facts: Facts describe the current situation or known information.
Rules: Rules define logical relationships between facts and possible conclusions.
Example
Fact: Patient has fever
Fact: Patient has cough
Rule:
IF fever AND cough → Diagnosis = Flu
Knowledge bases are typically developed by domain experts. For example:
- Medical professionals define diagnostic rules.
- Engineers design troubleshooting rules for machines.
- Financial experts create rules for risk detection.

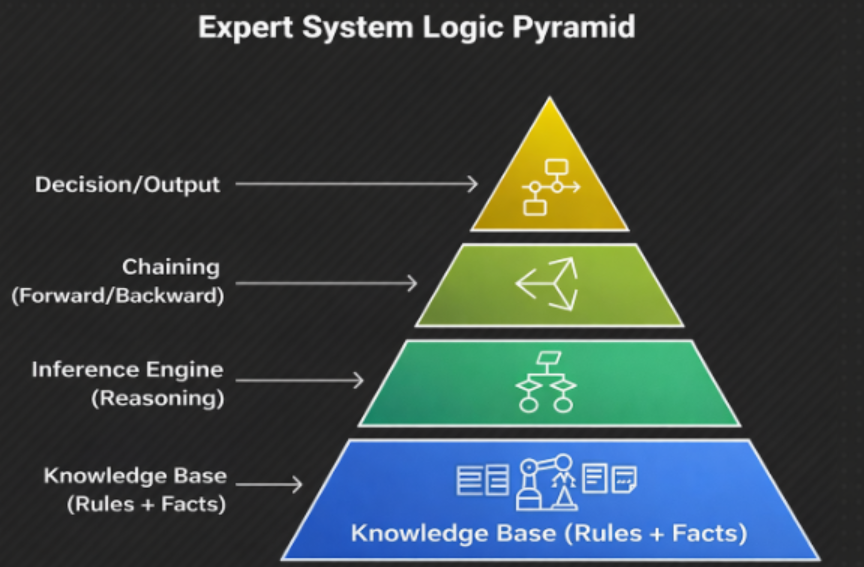

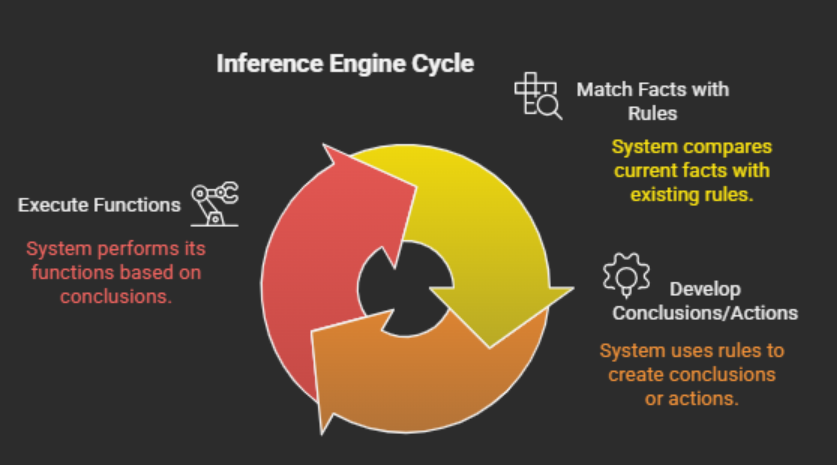

5. Inference Engine
The Inference Engine is the reasoning component of an expert system. It acts as the system’s decision-making mechanism.
The inference engine examines the facts stored in the knowledge base and applies the relevant rules to derive conclusions.
The process typically involves two key steps:
Matching
The system compares current facts with the conditions of available rules.
Reasoning
Once a rule matches the facts, the system executes the rule to generate a conclusion or recommended action.

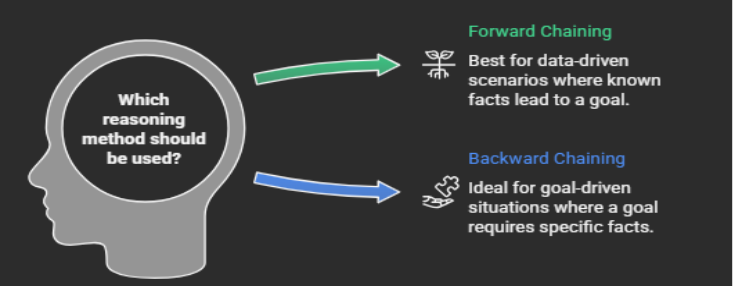

6. Reasoning Methods in Expert Systems

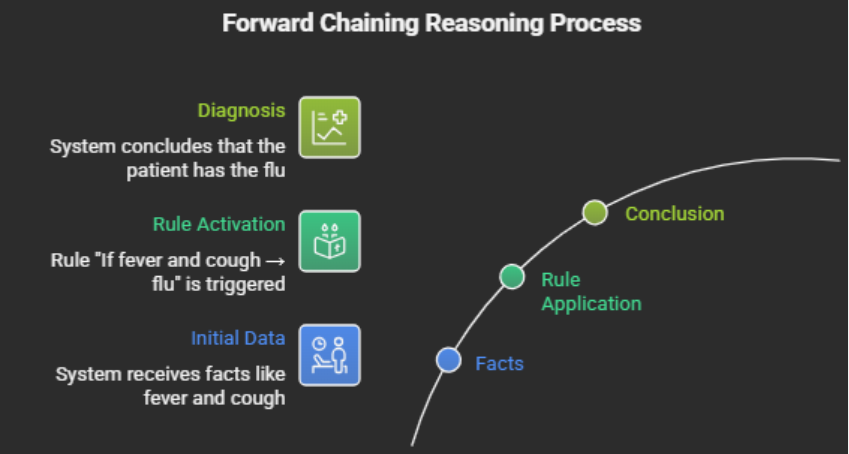

6.1 Forward Chaining (Data-Driven Reasoning)
Forward chaining begins with the available facts and applies rules to derive new conclusions until the goal is reached.
Example
Facts: fever + cough
Rule: If fever and cough → flu
Conclusion: flu
Common applications:
- Real-time monitoring systems
- Diagnostic systems
- Industrial control systems

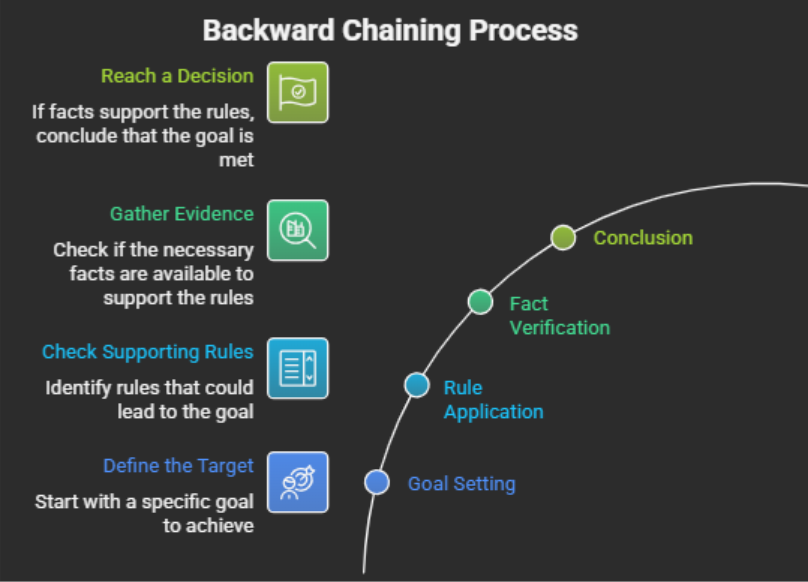

6.2 Backward Chaining (Goal-Driven Reasoning)
Backward chaining begins with a goal or hypothesis and works backward to verify whether the facts support it.
Example
Goal: Determine if patient has flu
Rule: If fever and cough → flu
Check facts:
Fever?
Cough?
Conclusion: If both are true → flu
Common applications:
- Question-answering systems
- Expert consultation systems
- Medical diagnosis tools
7. Real-World Applications of Rule-Based Expert Systems
Medical Diagnosis
Rule-based systems analyze patient symptoms to identify potential diseases.
Example rule:
IF fever + cough + sore throat
THEN possible flu
These systems assist doctors by providing quick diagnostic suggestions.
Banking and Financial Fraud Detection
Banks use rule-based systems to detect suspicious transactions.
Example rule:
IF transaction amount > $10,000
AND location is unusual
THEN flag transaction
This helps reduce fraud and improve financial security.
Customer Support Chatbots
Many automated support systems rely on rule-based logic to answer common questions.
Example rule:
IF user says “forgot password”
THEN send password reset link
Such systems provide instant responses while reducing support workload.
Industrial Automation
Expert systems monitor equipment conditions and prevent system failures.
Example rule:
IF temperature > threshold
AND vibration is high
THEN shut down machine
This helps prevent equipment damage and ensures safe industrial operations.
Recommendation Systems
Rule-based logic is also used in e-commerce recommendation engines.
Example rule:
IF user buys a phone
THEN suggest a phone case
This improves user experience and increases cross-selling opportunities.
8. Conclusion
Rule-Based Expert Systems remain an important part of Artificial Intelligence, particularly in domains that require clear logic, transparency, and expert knowledge. By combining a structured knowledge base with an inference engine, these systems can perform reliable decision-making in specialized fields.
Although modern AI heavily relies on machine learning and data-driven models, rule-based systems continue to be valuable where expert knowledge is more reliable than large datasets. Their ability to provide explainable decisions makes them particularly useful in areas such as healthcare, finance, and industrial automation.
