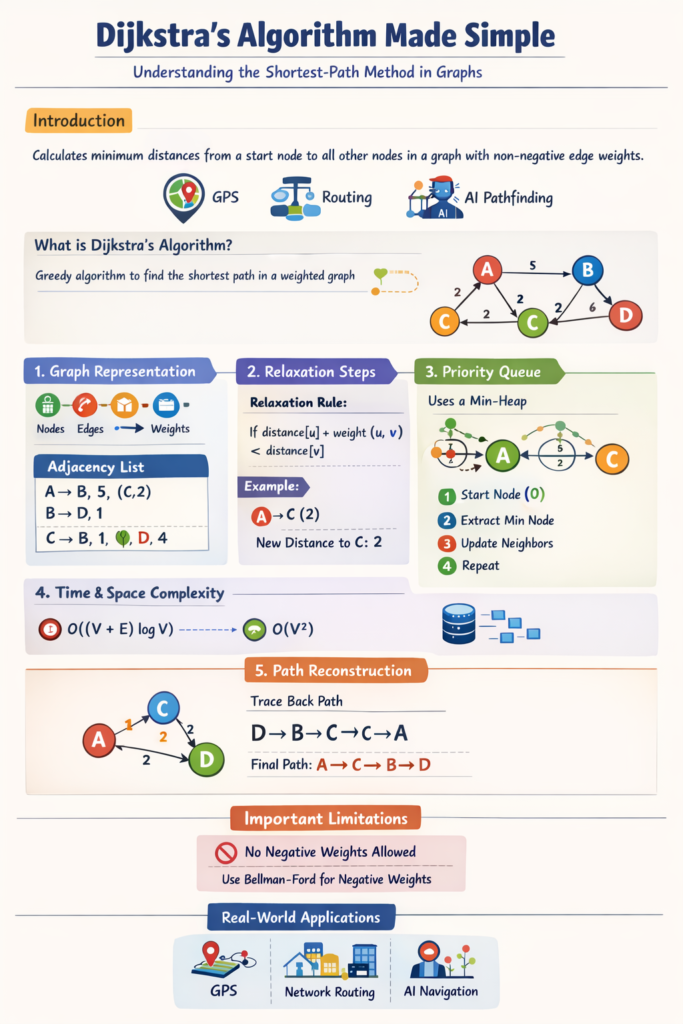

Understanding the Shortest-Path Method in Graphs
Introduction

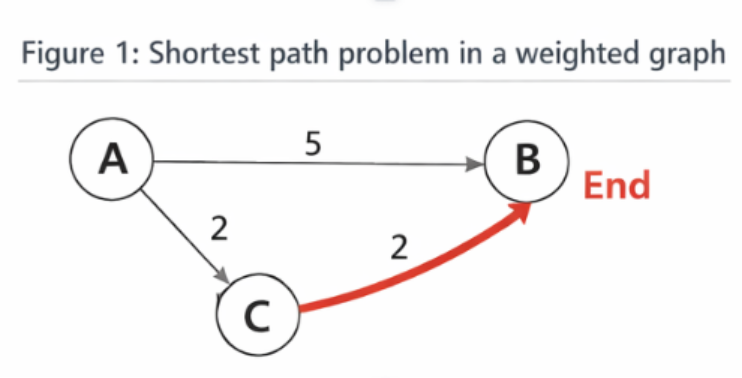

The shortest path problem exists as a fundamental computational challenge which researchers in computer science and Artificial Intelligence work to solve.
Dijkstra’s Algorithm is one of the most widely used solutions for this task. The algorithm calculates minimum distances from a start node to all other nodes in a graph when all edge weights remain non-negative.
The algorithm demonstrates simplicity and efficiency while serving as the core technology for various applications which include GPS navigation and network routing and AI pathfinding.
What is Dijkstra’s Algorithm?
Dijkstra’s Algorithm functions as a greedy graph algorithm which determines the shortest path from one starting point to all other points in a weighted graph system.
The algorithm works by gradually expanding the set of nodes whose shortest distance from the source is already known.
1. Graph Representation
The implementation of Dijkstra’s Algorithm requires a proper graph representation as its initial step.
A graph consists of:
- Vertices (Nodes): Represent locations or points
- Edges: Represent connections between nodes
- Weights: Represent cost, distance, or time
Representations:
- Prefer the Adjacency List (best for Dijkstra)
- Adjacency Matrix
Example (Adjacency List):
A → (B, 5), (C, 2)
B → (D, 1)
C → (B, 1), (D, 4)
Weight functions rely on the weights of edges to determine the distance between two nodes on the graph.

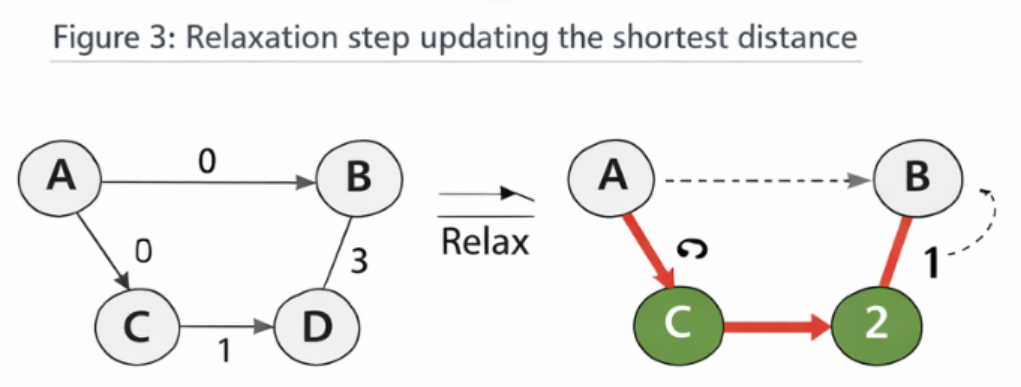

2. Relaxation Steps
The main function of Dijkstra’s Algorithm involves the process of relaxation. The method tests if there exists a shorter route to reach a particular node through another node.
Relaxation Rule:
If distance[u] + weight (u, v) < distance[v]
then update distance[v]
Example:
Distance to A = 0
A → C (weight 2)
New distance to C = 0 + 2 = 2
If this value is smaller than the previously stored distance, it is updated. The algorithm maintains its shortest distance record because relaxation continuously updates the current shortest path distance.

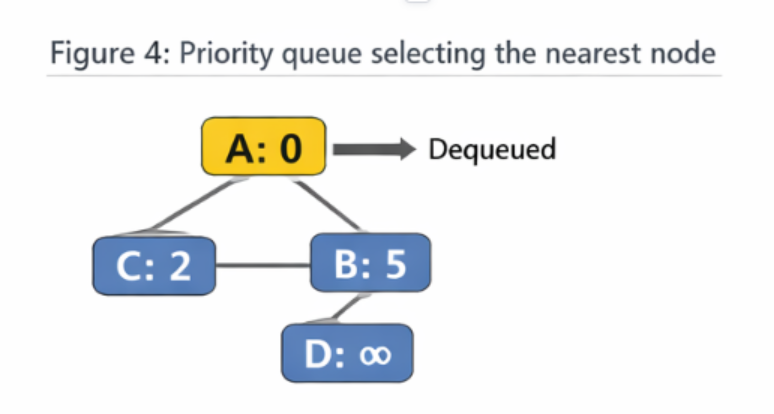

3. Priority Queue Usage
Dijkstra’s Algorithm implements a priority queue (min heap) to efficiently extract the next node closest to the source.
Why is a Priority Queue?
- The algorithm selects the node which has the least distance.
- The algorithm eliminates all comparisons which do not need to be executed.
- The system achieves better results through the changes that have been made.
Process:
- The system requires you to insert a source node which will have a distance value of 0.
- The system needs to extract the node which has the smallest distance value.
- The system will perform a relaxation process for all edges which are connected to the current node.
- The system needs to perform an update process to modify the contents of the priority queue.
- The process will continue until all nodes have been completed.
The algorithm achieves efficient performance through this method, which works effectively with extensive graph data.
4. Time and Space Complexity
The performance of Dijkstra’s Algorithm depends on how it is implemented.
Time Complexity:
Using priority queue:
O((V + E) log V)
Using adjacency matrix:
O(V²)
Where:
V = number of vertices
E = number of edges
Space Complexity:
O(V) for distance and visited arrays

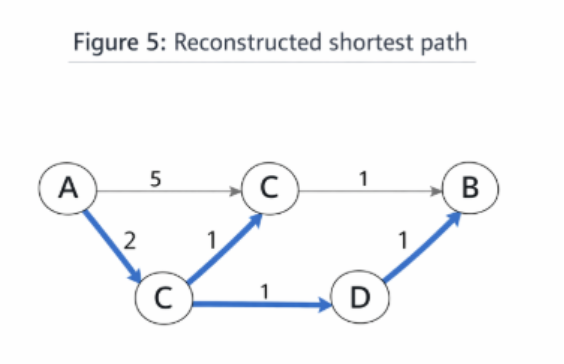

5. Path Reconstruction
Dijkstra’s Algorithm enables the determination of both the shortest path distance and the actual shortest path itself.
The process of Path Reconstruction uses these two steps.
- The system needs to keep an array which stores parent information.
- The system needs to save the earlier node whenever the distance value gets changed.
- The system needs to follow a path from the destination point back to the source point.
Example:
D ← B ← C ← A
Final path:
A → C → B → D
It is a highly important feature for those using navigation systems and planning routes.
Important Limitations
The system becomes unusable when negative edge weights are present.
The Bellman–Ford Algorithm serves as the optimal solution for graph problems which contain negative weight edges.
Real-World Applications
- GPS systems provide navigation through map-based directions.
- Network routing protocols establish connections between different network systems.
- Artificial intelligence systems use pathfinding techniques to navigate through game environments.
- Robotics technology helps improve efficiency in logistics operations.
Conclusion
Dijkstra’s Algorithm serves as a basic graph algorithm which efficiently calculates the shortest distance between two points. The system achieves optimal distance results through its combination of relaxation steps and priority queues and path reconstruction methods. The system serves as a fundamental concept which computer science and AI fields and practical systems rely on because of its straightforwardness and dependable nature.
